TECNOVILL has extensive experience in the design and manufacture of machinery, specialized in the fruit and vegetable sector.
GANTRY DEPALLETIZER DS-POR 3 AXES
.jpg)

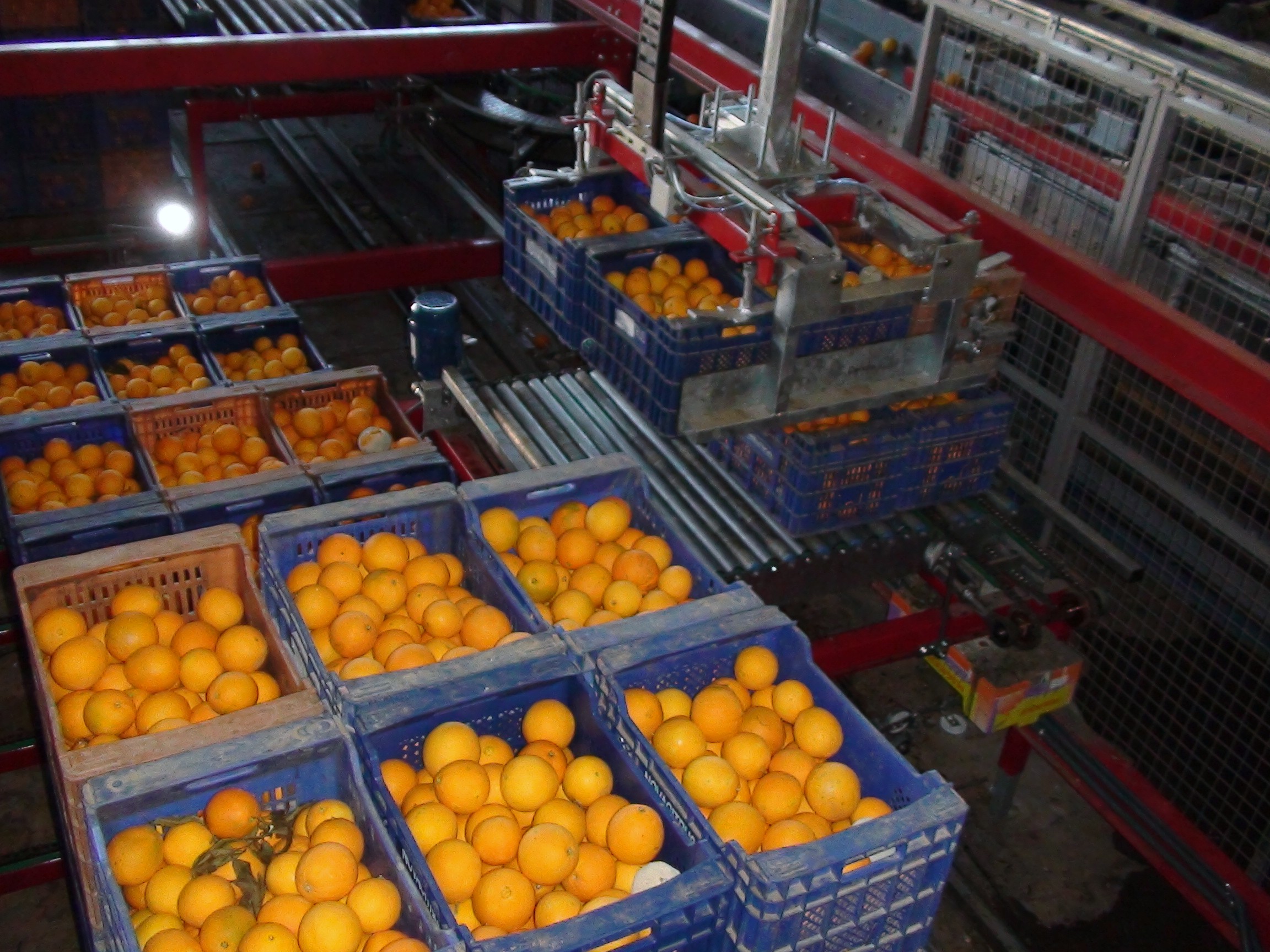

The DS-POR depalletizer can automatically manage the entire emptying area with a single unit, making it a very competitive solution in terms of quality/price ratio. The mixer depalletizer empties field boxes 6 by 6 and can work simultaneously with several pallets. It also has the option of automatic stacking of empty pallets.
This machine is designed for depalletizing various elements, being able to work with several pallets simultaneously. It has 3 main movements, vertical and horizontal and z-axis so that its work stations are aligned under the gantry. Its robust design allows it to perform high precision movements that ensure perfect depalletizing.
This machine is always attached to a tipper, the depalletizer performs the function of depositing a complete layer of 6 boxes on the tipper table, thus being able to mix production from several pallets.
Dimensions
| Length (mm) | 7600 |
| Width (mm) | 1890 |
| High (mm) | 2676 |
| Weight (mm) | 2930 |
| Area (m²) | 14.36 |
Consumption
| Electric (kW) | 4.75 |
| Air (l/h) | |
| Pressure (Bar) | |
| Gasoil (l/h) | |
| Gas (m³/h) |
-
